Hot Dipped Galvanized Steel Frame floating dock With Qualified Decking

FOB Reference Price:Get Latest Price
US $230-350 / Square Meter | 1 Square Meter/Square Meters (Min. Order)
Supply Ability:
3000 Square Meter/Square Meters per Month
Port:
GuangZhou Port
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Stark yacht marine
Model Number:
floating dock
Part:
Marina
Marina Frame:
Galvanized Steel Frame
Weight:
45KG/SQM
Load:
50-300KG /SQM
Freeboard:
350-750MM
LIFE SPAN:
30 years
Floats:
HDPE floats / Concrete floats / PE floats
Decking:
Antispesis pine wood / WPC / Hardwood
Pile Cap:
LLDPE pile cap
Power pedestal:
Aluminum alloy
Dock Bumper:
WPC bumper / rubber bumper
Packaging & Delivery
Packaging Details
Hot Dipped Galvanized Steel Frame floating dock With Qualified Decking
Standard export loaded into shipping containers
Delivery Time
Normally 30 days against the advance payment
              Hot Dipped Galvanized Steel Frame floating dock With Qualified Decking

                Galvanized Steel Floating Dock Information

  Weight:

  45kg/square meter

  Load:

  50-300kg/square meter

  Freeboard:

  350-750 mm

  Lifespan:

  30 years (should be maintined regularly)

  Environmental:

  Recyclable, protect environmental requirements

  Frame:

  Galvanized Steel

  Floats:

  HDPE floats  / concrete floats

  Decking:

  Antisepsis pine wood  / WPC /  Hardwood



                Floating Dock Technical parameter

SPECIFICATION(MM)

FREEBOARD(MM)

CAPACITY(N/M)

WARRANTY

2000*12000

500-550

1200N-1800N

10 YEARS

2500*12000

500-550

1500N-2500N

10 YEARS

3000*12000

500-650

1500N-2500N

10 YEARS

2500*12000

500-650

1500N-2500N

10 YEARS

4000*12000

500-650

1500N-2500N

10 YEARS

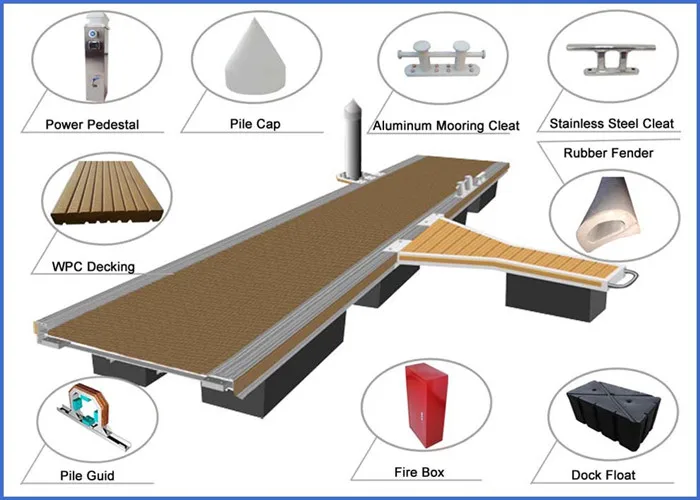

Stark yacht marine accessories information

1.Structure: Galvanized Steel Frame

2.Decking:WPC,polo wood,pine wood, or other hard woods for your option. Different is avilibale

3.Floats:LLDPE Floats,Concrete floats

4.Fix:piling

5.Pile Cap:LLDPE Pile Cap

6.Power Pedestal: alluminum alloy,stainless steel,polyethylene

7.Dock Bumper:WPC bumper,rubber bumper

8.Cleat:stainless steel 316 or 316L,5 tons,10 tons





Galvanized Steel Floating Dock Features

1.Galvanized Steel frame floating dock, stable and elegant.

2.LLDPE floats or concrete floats with EPS foam, density at least 15kg/m3.

3.WPC decking or other imported decking,fixed by stainless steel 316L screw and bolts.

4.With WPC or rubber bumper to protect the dock.

5.Easy and quick assembly,environmentally friendly,sturdy and safe.

6.Anti-wave and long life expectancy.









There are 4 steps to install a Galvanized Steel floating dock.

Step 1. Installation in factory, assembling and taking detailed pictures & video guidance.

Step 2. Loading components, depends on the quantity to load before assembled or after assembled.

Step 3. Installation will be proceeded by the local construction teams.

Step 4. Construction teams follow the guidance we sent to install, or we send our engineer to guide the teams.



Our Services

We can plan, design, produce and install Galvanized Steel floating dock / bridge / house of all scales, if you have any idea

you can inform us and we will design for you. Please don't hesitate to contact us if you want more projects, information, design

or something else. We are looking forward to your enquiry.
